SH-1350

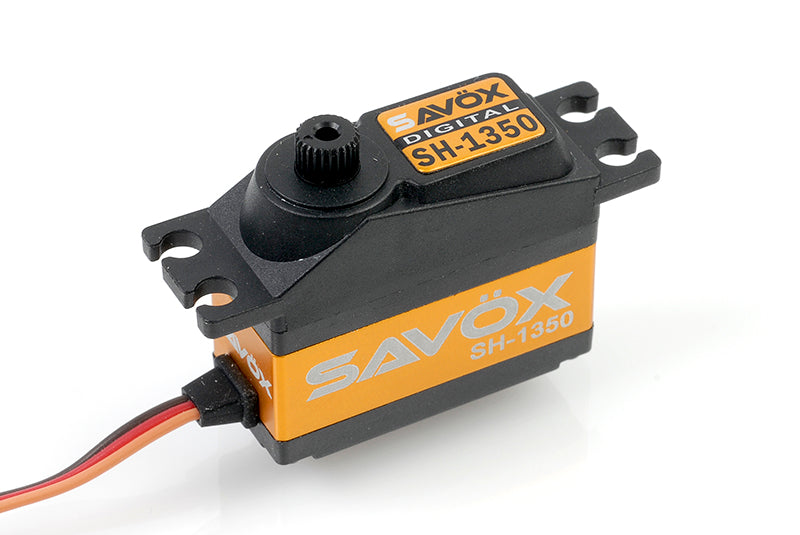

Savox - SH-1350 Digital Coreless Motor Servo, Composite Gears

Features:
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision Composite gears

Technical specifications:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V - 6.0V
Servo Type / Size: Midi
Motor Type: Coreless Motor
Gear Material: Composite Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 6.0V: 0.11 Sec/60°
Torque kg/cm @ 6.0V: 4.6 Kg/cm
Length (mm): 35.0 mm
Width (mm): 15.0 mm
Height (mm): 29.2 mm
Weight (g): 26.0 g
Connector type: JR
Spline size: 25T Spline
